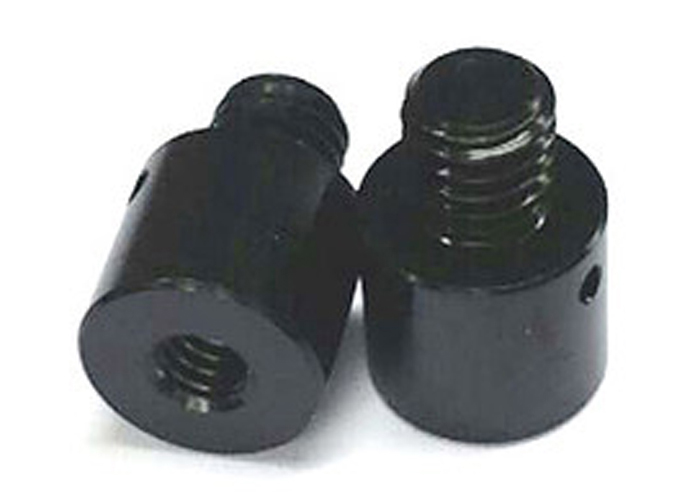

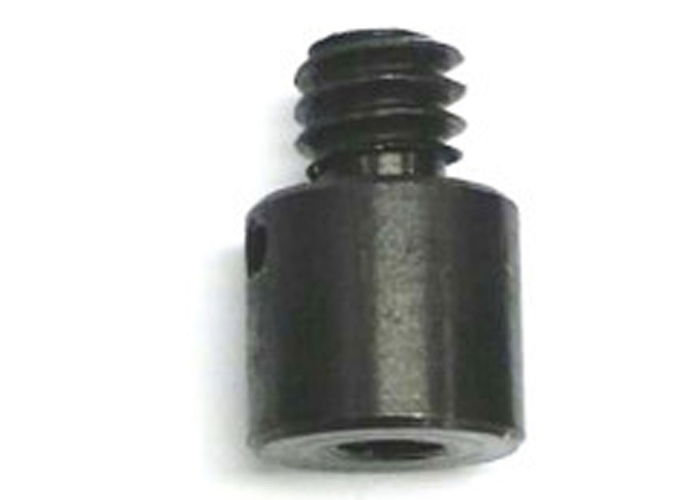

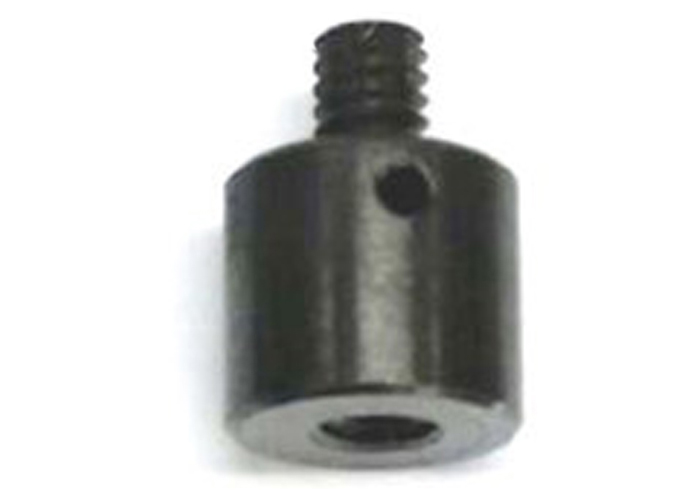

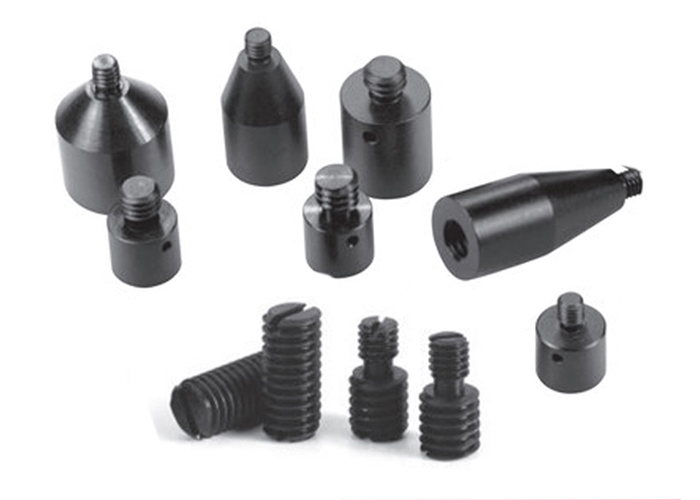

產品名稱: PJJ03連接件轉接頭變徑螺釘轉變螺絲可變光學轉接釘
規格:
單位：mm

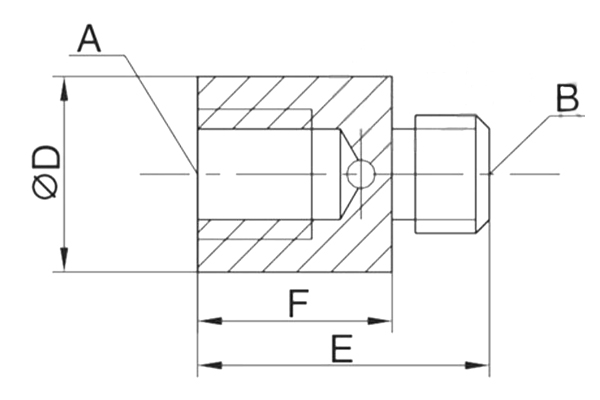

Model | A-B | φD | F | E | weight（g） |
PJJ03-102 | 8-32toM4 | 10 | 9 | 14 | 2 |
PJJ03-103 | 8-32toM6 | 10 | 9 | 15 | 2 |
PJJ03-201 | 1/4”-20to8-32 | 10 | 10 | 15 | 2 |
PJJ03-202 | 1/4”-20to M4 | 10 | 10 | 15 | 2 |
PJJ03-203 | 1/4”-20toM6 | 10 | 10 | 16 | 4 |
PJJ03-301 | M4 to 8-32 | 10 | 9 | 14 | 2 |
PJJ03-302 | M4 to1/4”-20 | 10 | 9 | 15 | 2 |
PJJ03-303 | M4 to M6 | 10 | 9 | 15 | 2 |
PJJ03-401 | M6 to 8-32 | 10 | 10 | 15 | 2 |
PJJ03-402 | M6 to1/4”-20 | 10 | 10 | 16 | 2 |
PJJ03-501 | M10×1 to8-32 | 13 | 15 | 20 | 6 |
PJJ03-502 | M10×1to M4 | 13 | 15 | 20 | 6 |
PJJ03-503 | M10×1to1/4”-20 | 13 | 15 | 21 | 6 |
PJJ03-504 | M10×1toM6 | 13 | 15 | 21 | 7 |
