產品型號： | CCW-884 （通用規格） | CCW-885 | CCW-886 | CCW-887 | CCW-888 | CCW-889 |

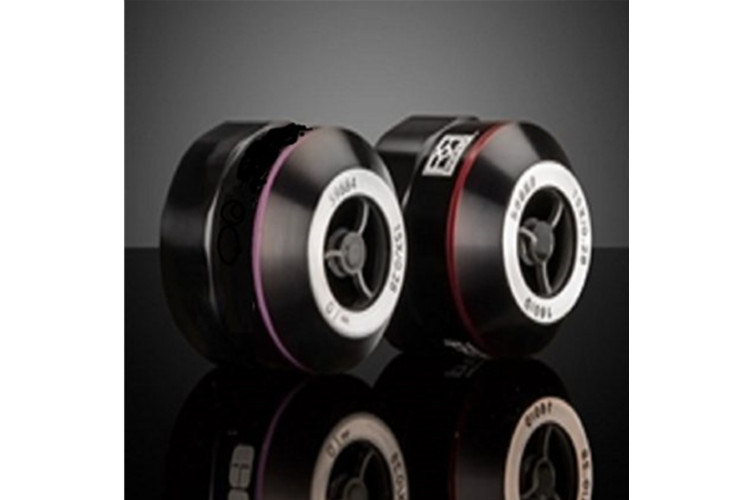

產品名稱： | 高精度Reflx反射物鏡，遠場共軛，DUV鍍膜 | 高精度Reflx反射物鏡，近場共軛，DUV鍍膜 | 高精度Reflx反射物鏡，遠場共軛，UV鍍膜 | 高精度Reflx反射物鏡，遠場共軛，UV鍍膜 | 高精度Reflx反射物鏡，遠場共軛，鍍金膜 | 高精度Reflx反射物鏡，近場共軛，鍍金膜 |
方式: | Infinity Corrected | Finite Conjugate | Infinity Corrected | Finite Conjugate | Infinity Corrected | Finite Conjugate |
放大率: | 15X | 15X | 15X | 15X | 15X | 15X |
涂層: | DUV Enhanced Aluminum (150-11000nm) | DUV Enhanced Aluminum (150-11000nm) | Enhanced Aluminum (200-11000nm) | Enhanced Aluminum (200-11000nm) | Protected Gold (700-11000nm) | Protected Gold (700-11000nm) |
數字孔徑 NA: | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
波長范圍 (nm): | 150 - 11000 | 150 - 11000 | 200 - 11000 | 200 - 11000 | 700 - 11000 | 700 - 11000 |

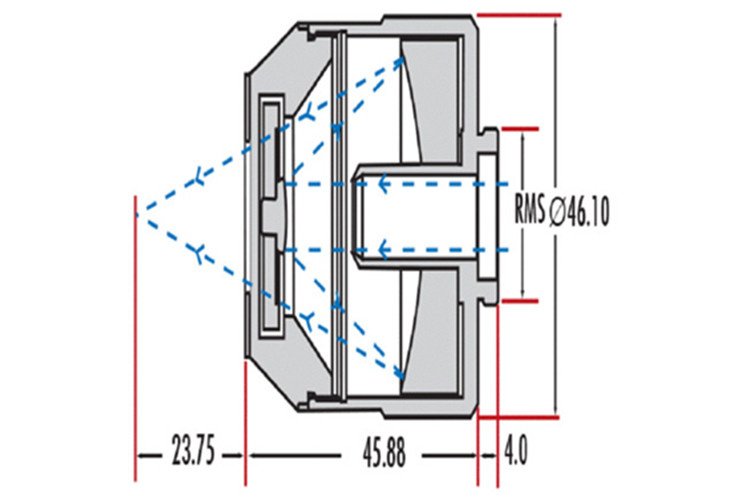

工作距離 (mm): | 23.75 | 23.75 | 23.75 | 23.75 | 23.75 | 23.75 |
Aperture Diameter (mm): | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |

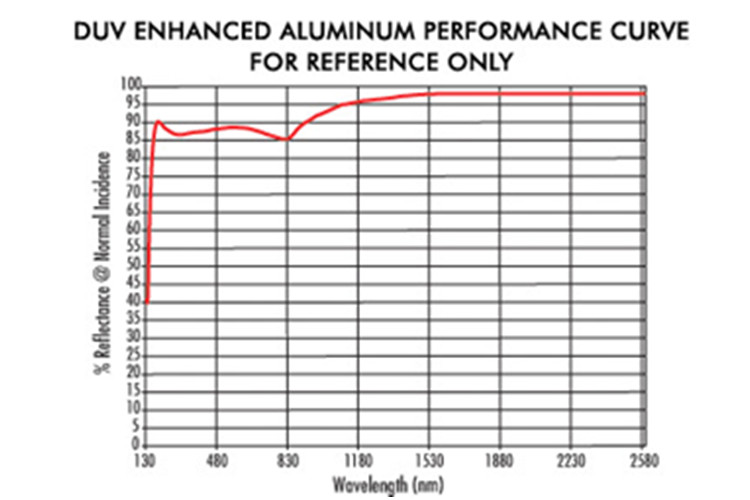

涂層規格: | Ravg >83% @ 150 - 1000nm (typical) | Ravg >83% @ 150 - 1000nm (typical) | Ravg >85% @ 200 - 700nm (typical) | Ravg >85% @ 200 - 700nm (typical) | Ravg >96% @ 700 - 11000nm (typical) | Ravg >96% @ 700 - 11000nm (typical) |
Ravg >94% @ 1000 - 11000nm (typical) | Ravg >94% @ 1000 - 11000nm (typical) | Ravg >76% @ 700 - 1750nm (typical) | Ravg >76% @ 700 - 1750nm (typical) |
|
|
|
| Ravg >96% @ 1750 - 11000nm (typical) | Ravg >96% @ 1750 - 11000nm (typical) |
|
|
小型發射鏡直徑 (mm): | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
入射瞳孔 (mm): | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 |
水平視場, 1/2" 傳感器: | 0.43mm | 0.43mm | 0.43mm | 0.43mm | 0.43mm | 0.43mm |
水平視場, 2/3" 傳感器: | 0.59mm | 0.59mm | 0.59mm | 0.59mm | 0.59mm | 0.59mm |
焦距 FL (mm): | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
支架: | RMS | RMS | RMS | RMS | RMS | RMS |
模糊度 (%): | 27 | 27 | 27 | 27 | 27 | 27 |
傳輸波前，RMS: | λ/14 | λ/14 | λ/14 | λ/14 | λ/14 | λ/14 |
類型: | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective |
