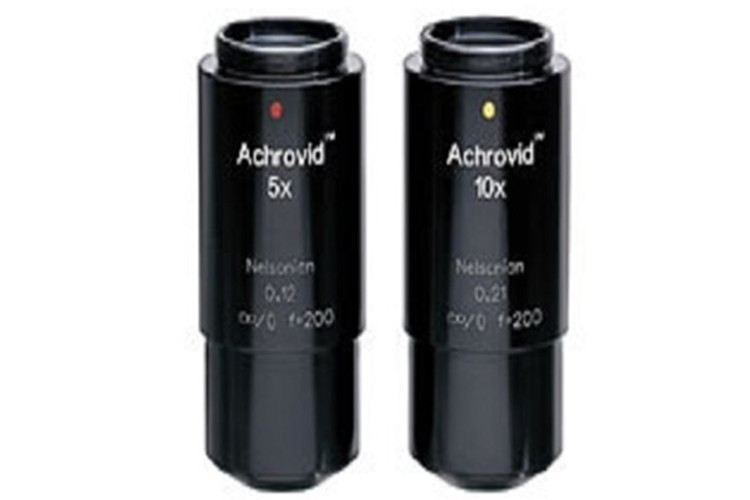

Video-dedicated Microscope Objectives
37mm Working Distances
Designed for Use in Conjunction with Other Infinity Products
The newly-developed Infinity Achrovid? series is a cost-effective complement to traditional Mitutoyo Long Working Distance objectives. All Achrovid? objectives have a 26mm Whitworth common thread and are compatible, via adapter, with the InfiniTube? In-Line Assembly system.
型號： | CCW-121 | CCW-122 | CCW-123 | CCW-124 | CCW-790 | CCW-791 |
放大率 | 2X | 2.5X | 3.3X | 4X | 5X | 10X |
工作距離(mm) | 37 | 37 | 37 | 37 | 37 | 17.5 |
數(shù)字孔徑NA | 0.054 | 0.064 | 0.077 | 0.09 | 0.12 | 0.21 |
分辨能力(μm) | 6.2 | 5.2 | 4.3 | 3.7 | 2.8 | 1.6 |
景深(μm) | 91 | 75 | 45 | 25 | 16 | 4.5 |
焦距FL (mm) | 100 | 80 | 60 | 50 | 40 | 20 |
類型 | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective | Microscope Objective |
方式 | Infinity Corrected | Infinity Corrected | Infinity Corrected | Infinity Corrected | Infinity Corrected | Infinity Corrected |
水平視場, 1/2"傳感器: | 3.20mm | 2.56mm | 1.94mm | 1.60mm | 1.28mm | 0.64mm |
水平視場, 2/3"傳感器: | 4.40mm | 3.52mm | 2.67mm | 2.20mm | 1.80mm | 0.88mm |
生產(chǎn)商: | Infinity | Infinity | Infinity | Infinity | Infinity | Infinity |
安裝螺紋 | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI | M26 x 36 TPI |
重量(g) | 96 | 96 | 96 | 96 | 96 | 96 |
